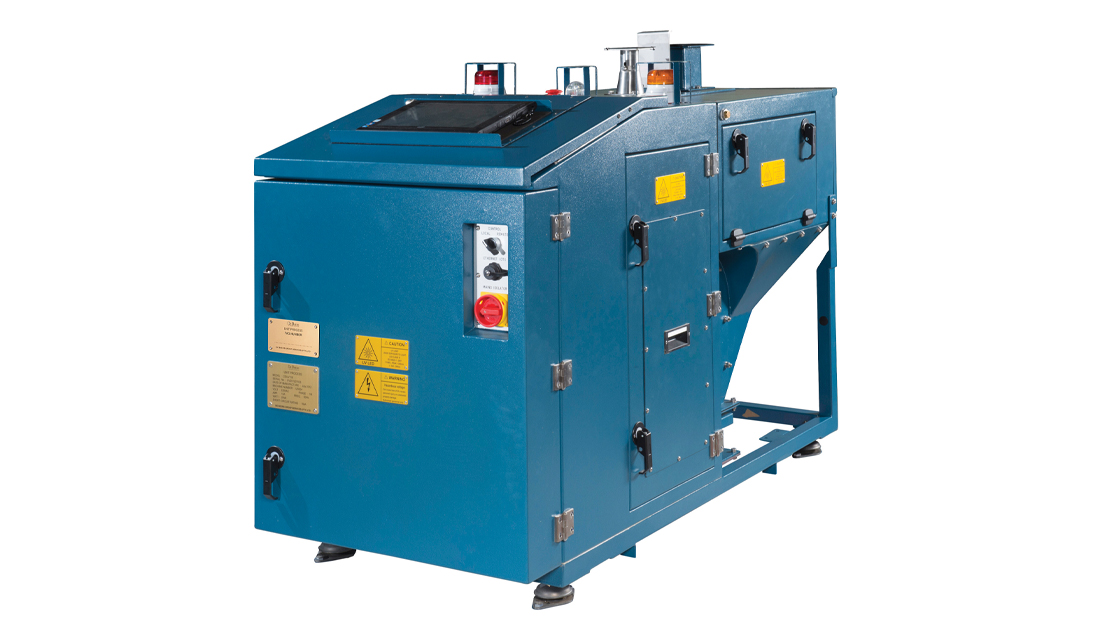

CDUV 118 Osprey - Ultra Violet diamond Scavenging Sorter

APPLICATION

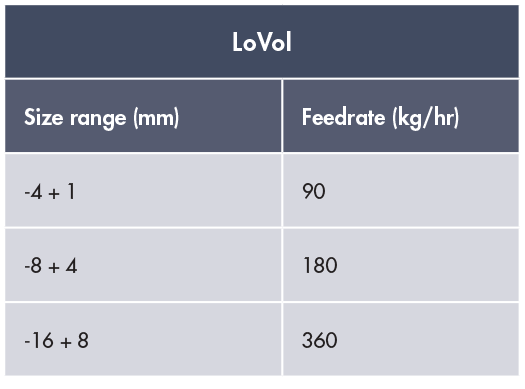

Free fall UV diamond scavenging sorter, single pass, single input. Final processing of tailings from re-concentration processes like X-ray recon, sort house glove boxes, SPS, etc. Material size range (-16mm + 1mm) split at appropriate ratio and feedrates. Material feed application dry. Feasible grease replacement technology.

FEATURES AND SPECIFICATIONS

  • Robust air ejector system
  • Modular, compact robust and ergonomic design
  • Split cabinet design – separate process and service compartment for enhanced security
  • Single network interface for control and information
  • Full maintenance support
  • User friendly menu driven OTI and HMI
  • Tracer catch trays for tracer tests
  • Multiple machine control with wireless tablet



BENEFITS

  • Optimum diamond scavenging with minimum gangue material at high feedrates and relative low yields
  • Possible applications in other UV fluorescent minerals, e.g. rubies
  • Spillage free
  • Operator and maintenance friendly
  • Complete operator safety
  • Low operating costs
  • Low Capex
  • Complimentary technology to X-ray sorting
